UPC2100 Data Acquisition PCI Card
- Direct Sensor Input to Your PC
- 16-bit Resolution, 100 KHz Conversion Rate
- 16 Input Channels, For PCI Expansion Slot
- Accepts Any Mix or Combination of Sensor Inputs Thermocouples, RTDs
Strain Gages, LVDTs, VR Sensors Potentiometers, DC Volts - Software Included
- Compatible with C#, .NET, C++, Visual Basic, LabVie

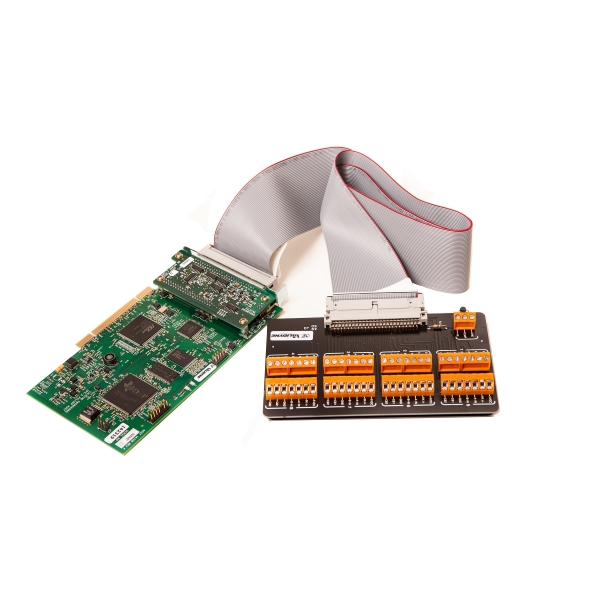

The UPC2100 PCI Sensor Interface card provides real-world data acquisition and control for your PC. Up to 16 sensor inputs in any mix or combination are accepted by the UPC2100. No external signal conditioning is required. The UPC2100 includes configuration and data acquisition software and is compatible with C#, .NET, C++, Visual Basic, LabView.
Thermocouples, RTDs, strain gages, LVDTs, potentiometers, VR sensors and low-level DC voltages are wired directly to the UPC card in any mix or combination of single-ended or differential input types. All required excitation, amplification and linearization is provided by the UPC card. The card features 10 stages of gain with 16 bits of resolution, programmable channel-by-channel. An innovative dual-conversion scheme provides outstanding zero offset correction for low-level measurements.
The UPC2100 provides polynomial linearization for thermocouples and RTD’s. Scale and offset factors can be applied to all inputs. The UPC2100 produces a floating-point value for all readings, directly in engineering units.
Software for the UPC2100 includes a GUI configuration utility that allows the user to set sensor type, gain range, channel, and all other input parameters. The configuration can be saved to non-volatile memory on the card so that The UPC2100 can be used in embedded applications.
Easy Sense 2100 data acquisition software is also included so that the user may record and sensor data to a spreadsheet or ASCII file in real time.
Graphing Capabilities and Trigger Functionality included in the Premium Version of Easy Sense.
UPC2100 Advantages:
- Direct Sensor Input
- No External Signal Conditioning Needed
- Sensor Excitation Included
- On-Board TC, RTD Linearization
- Works with C#, .NET, C++, Visual Basic, LabView
- All Cables and Terminal Blocks Included
