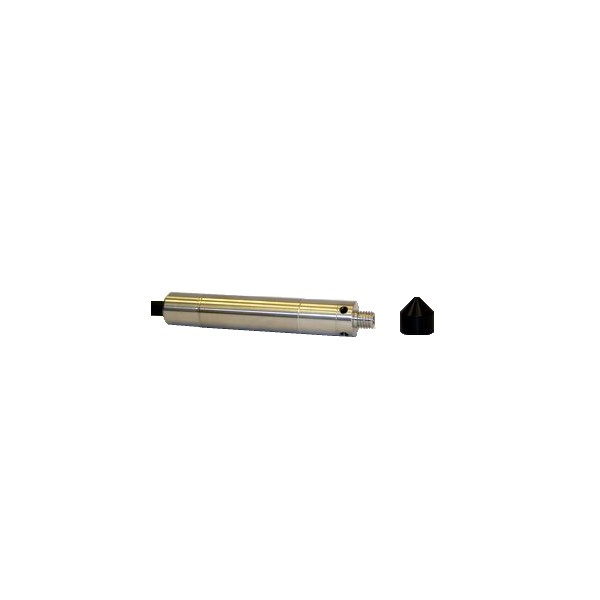

The P75 Submersible Pressure Transmitter is a depth and level pressure transmitter for applications in bore holes, lakes, and rivers. Made out of 316SST, the P75 can be used in very corrosive environments. This piezoresistive silicon pressure transmitter comes with a built in amplifier. The backside of the sensor (gauge version) is ventilated to the atmosphere through a polymide tube in the cable. The shield in the cable is connected to the stainless steel housing. All transmitters are leak tested with helium.
- Applications in offshore and subsea industries
- High corrosion resistance
- 100 % helium leak tested at 6 bar
Downloads
Coming Soon
Instruction Manual
