The robust P55 pressure transducer provides cost-effective reliability for severe test environments. With extreme resistance to shock and vibration, the P55 pressure transducer delivers the same high-level performance expected from more delicate differential pressure transducers and pressure transmitters. With variable reluctance sensing technology, the P55 pressure transducer delivers fast dynamic response, high resistance to vibration and superior signal stability through ambient temperature change for a wide variety of low-pressure to high-pressure measurements. The P55 pressure transducer will accept both liquids and gases directly at the sensing diaphragm – and there are no internal isolation fluids to slow the sensor response or cause excessive temperature drift errors.

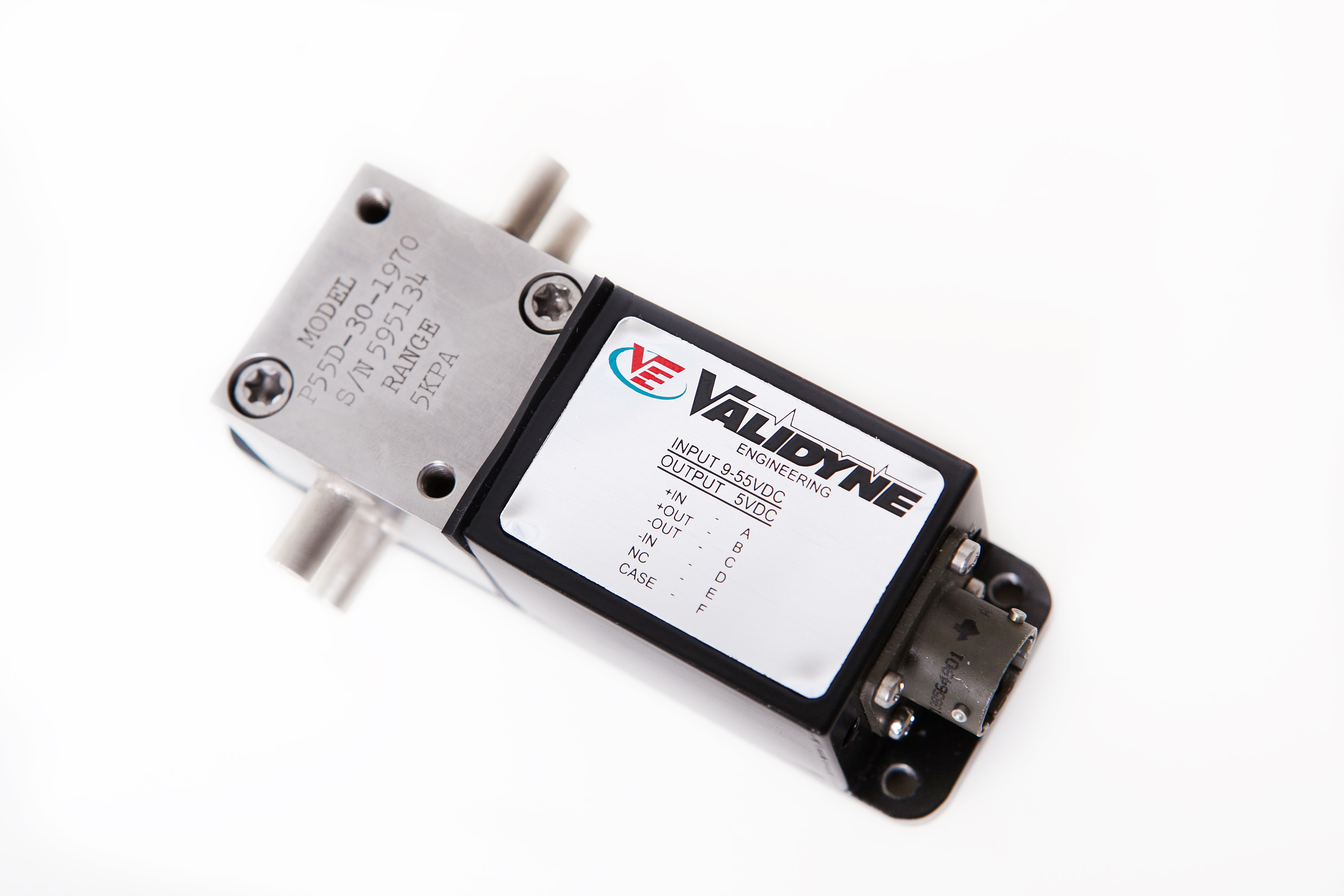

P55 General Purpose Pressure Transducer and Transmitter

Rugged DP transmitter
For liquid or gas service
4-20 mA Two-wire, ±5 VDC
Full Scale Ranges from 2.22 inH2O to 10 KPsi
Excellent temperature characteristics
NEMA 4 Housing
0.25% standard, 0.1% and 0.05% accuracy options available
Now available in 316SS and Inconel

Description
Support

The P55 Pressure Transducer is Ideal for:

Flight testing
Vehicle testing
Hydraulic systems
Product – Process control testing

The robust P55 pressure transducer provides cost-effective reliability for severe test environments. With extreme resistance to shock and vibration, the P55 pressure transducer delivers the same high-level performance expected from more delicate differential pressure transducers and pressure transmitters.

With variable reluctance sensing technology, the P55 pressure transducer delivers fast dynamic response, high resistance to vibration and superior signal stability through ambient temperature change for a wide variety of low-pressure to high-pressure measurements. The P55 pressure transducer will accept both liquids and gases directly at the sensing diaphragm – and there are no internal isolation fluids to slow the sensor response or cause excessive temperature drift errors.

Wide pressure measuring capability: ±3.50″ H₂0 to 3200 psi in 23 full-scale ranges
Wet-Wet capability: accepts liquids & gases on both sides of the diaphragm
Withstands shock and vibration
Compact size: just 1.5″ x 1.5″ x 4.5″
Easy to mount with attached mounting flanges
Excellent temperature compensation characteristics
CE approved versions available
Available in differential and absolute versions

The P55 is available in three output configurations:

4-20 mA output – A true two-wire system which will operate over a supply voltage of 9 to 55 Vdc.
DC output –
Provides a ± 5 Vdc signal.
Isolated DC output –
Provides a ± 5 Vdc signal, isolated from the power supply by 100 MOhms.

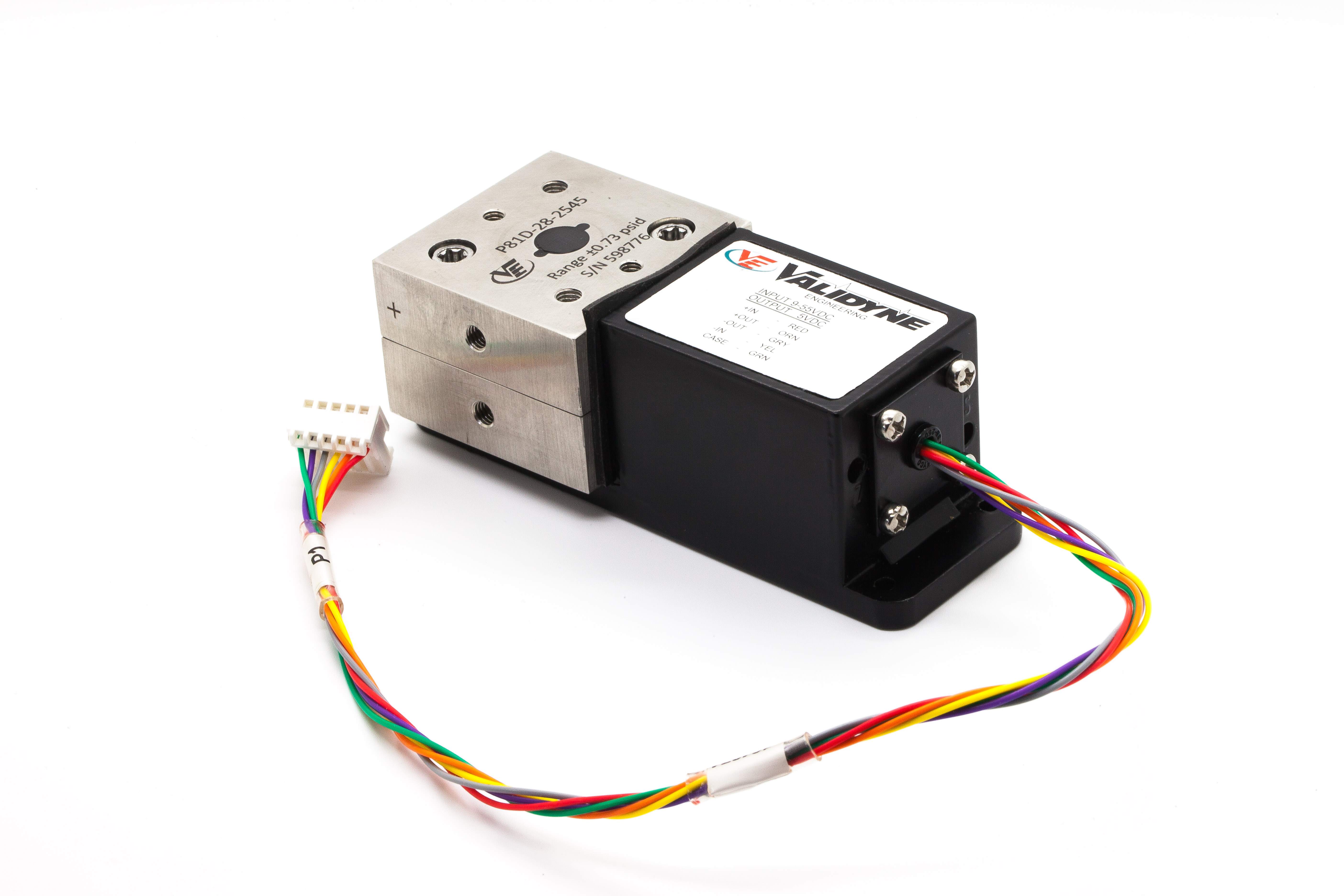

An absolute pressure version with a welded variable reluctance sensor is also provided. Zero and span controls are available for external adjustment. Selection of connector or pigtail wiring options.

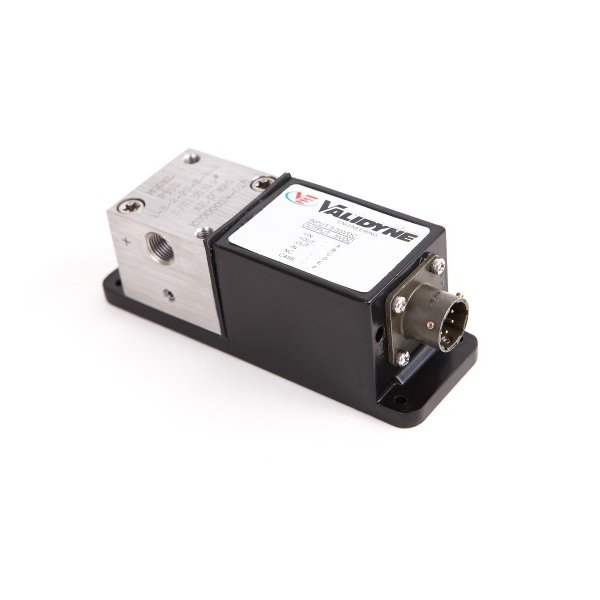

The lightweight, compact unit measures just 1.5″ x 1.5″ x 4.5″ and includes four mounting holes so that it can be easily secured to any flat surface.

Now available in 316 SS for sea water and saline solutions and Inconel for brine and other corrosive media.
