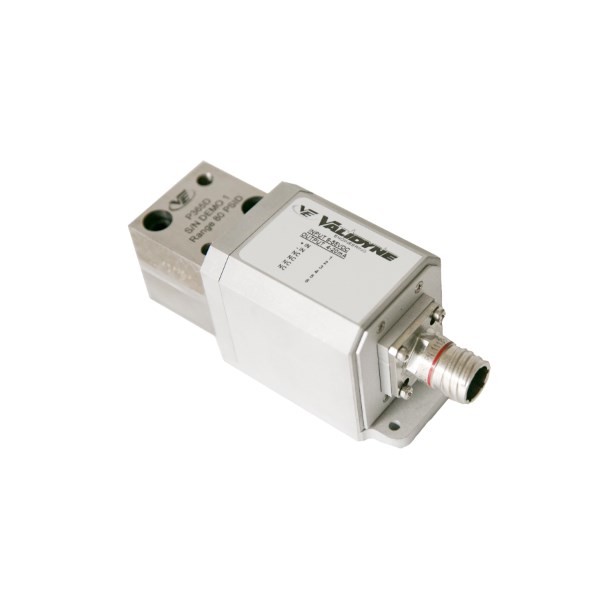

P370 High Line Differential Pressure Transmitter

Return to Previous Page
New
High Line Differential Pressure Transmitter

P370 High Line Differential Pressure Transmitter

  • Low dP Range, High Line Pressure
  • Ranges From 0 to 10,000 psi FS
  • Wet-Wet Capability
  • Line Pressure to 10,000 psig
  • 5Vdc or 4-20mA Output
  • Stainless Steel Pressure Cavities
  • Fully Sealed Housing
Category: Tags: , , , , ,

The P370 High Line Differential Pressure Transmitter is Ideal for:

  • Core Testing Applications
  • Hydraulic Systems
  • High Line Pressures/Low DP

The P370 high line differential pressure transmitter is designed to make low differential pressure measurements at high static line pressures. Operating from unregulated 9 to 55Vdc, the P370 is available with 4-20mA, ± 5Vdc or isolated ± 5Vdc output over full scale pressure ranges from ±8 to ±10,000 psid. The output shift due to static pressure will not exceed 3% of full scale, up to a line pressure of 10,000 psig. This wet-wet pressure transmitter is packaged in a fully sealed housing for use in outdoor environments. With 5-16″-24″ UNF pressure ports and D38999 as standard options for pressure and electrical connections, the P370 is ideal for use in aerospace applications.

The P370 is ideal for flow or pressure drop measurements in high pressure hydraulic systems. Its compact design and rugged construction allow it to be used in harsh environments. The wetted materials is made of 410SST and a variety of O-ring material and plating options are available so that it may be used with corrosive liquids and gases.

Now available in 316 SS for sea water and saline solutions and Inconel and Hastelloy for brine and other corrosive media.

For more options on Validyne pressure transducers and transmitters visit the comparison chart.
