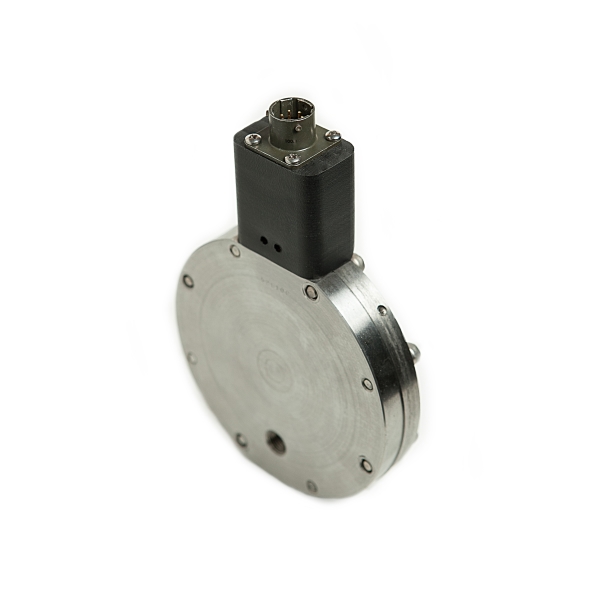

The P17 OEM Low Range pressure transducer features high sensitivity to very low pressures with full scales available down to 0.1 In H2O. Output signal is ±5 Vdc and power can be +5 to +28 Vdc. Zero and Span adjustments are included. The P17 has a robust steel sensor construction.
Special Features
Custom pressure ports, special power and signal options are also available.
Downloads
Our offers
- Full range as low as 0.25” H2O without turndown or amplification
- Low ambient temperature effects to improve very low measurements
- Selectable resolution on zero and span adjustments to ease critical calibrations
- Integral 3½ digit liquid crystal display available
- 4-20 mA output signal
- Elevation & Suppression offset calibration
- Full scale differential pressure ranges as low as ±0.008 psid
- High line pressure capability
- Wet-Wet differential
- Equal pressure inlet volumes
- Low acceleration sensitivity
- Field replaceable sensing diaphragms
- Measures ultra-low differential and gauge pressures from 0.10” H2O full-scale
- Absolute ranges as low as 0.08 PSIA full-scale
- 4-20 mA or 10-50 mA dc output
- Available in two- and four-wire configurations
- Integral 3 ½ digit liquid crystal local display available
- Field repairable
