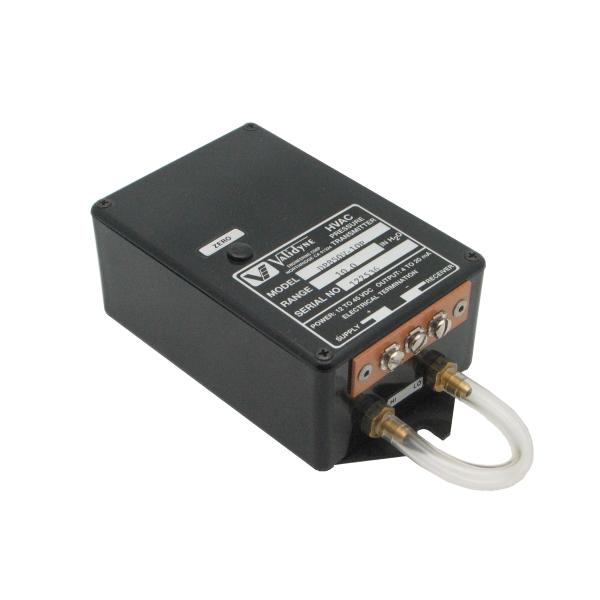

DP850/851 HVAC Pressure Transmitter
- Differential Pressure Ranges from 0.025” H2O full scale to 10.0” H2O full scale
- 4-20mA ( 2 wire) or 0-5 Vdc ( 3 wire) output
- Infinite resolution
- 12-45 Vdc unregulated power
- Easy to install
- Unaffected by humidity
The DP850/851 transmitters are designed for low pressure measurement in HVAC applications. The DP850 is available in full scale pressure ranges as low as 0.25 inH2O and the DP851 can be ranged to 0.025 inH2O full scale. Both models are available in 4-20 mA or 0 to +5 Vdc signal output options.
