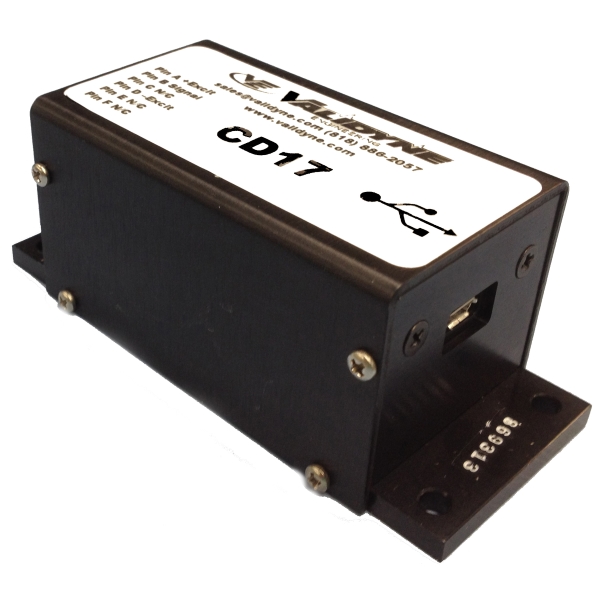

CD17 Single-Channel USB Carrier Demodulator
- USB Interface for Digital Operation with PC
- For Validyne Variable Reluctance Sensors AP10, DP15, DP45, DP103, DP303, DP350 & DP363
- USB Drivers and Data Logging Software Included
The CD17 is Ideal for:
- Laboratory Pressure measurement
- Level Measurements
- Hydraulic Pressures
- Flow Measurement
The Validyne model CD17 is a USB-powered carrier demodulator for Validyne variable reluctance pressure sensors such as the DP15, DP45 and DP103. The CD17 allows any Validyne variable reluctance sensor to be used directly with a PC via the USB port.
Communication and power via USB interface provides remote zero and span adjustment as well as digital pressure readings in mV/V. Drivers and software for the USB interface are included.
The zero and full-scale outputs are set by USB digital command. No potentiometer adjustments are required to calibrate. The CD17 has standard PT02A transducer electrical connections and measures just 1.5 x 1.5 x 5 inches overall. Powered by the +5 Vdc the CD17 has a USB micro connector.
The CD17 is compatible with the Validne USB-COM software as well as LabView, Visual Basic and any other data acquisition program using COM serial ports.
