Easy Sense Software
- Works with UPC2100, Universal Data Acquisition System(UDAS) and USB2251 Data Acquisiton Systems
- Accepts Any Mix or Combination of Sensor Inputs Thermocouples, RTDs Strain Gages, LVDTs, VR Sensors Potentiometers, DC Volts
- Included with purchase of UDAS,USB2251 or UPC2100
- Records data in real time to a CSV file
- Premium Versions available that include Graphing and trigger functionality
Easy Sense 2100 is available for use with the UPC2100. Easy Sense 225x is used with the Universal Data Acquisition System(UDAS) or the USB2251.

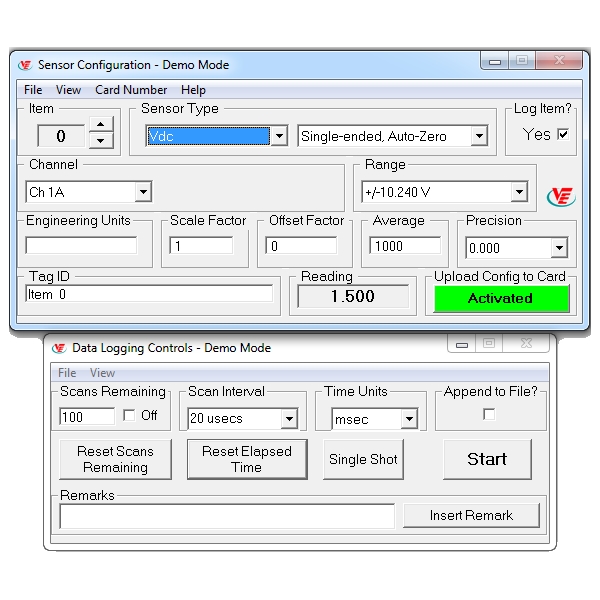

The Software includes a GUI configuration utility that allows the user to set sensor type, gain range, channel, and all other input parameters. The configuration can be saved to non-volatile memory on the card so that the UP2100 or the UDAS can be used in embedded applications.
The Easy Sense data acquisition software also records sensor data to a spreadsheet or ASCII file in real time.
Graphing Capabilities included in the Premium version gives the user the ability to plot a YT or a XY Graph. Trigger Functionality is also included in the Premium Version of Easy Sense.
Videos
Downloads
Our offers
- Direct Sensor Input to Your PC
- 16-bit Resolution, 100 KHz Conversion Rate
- 16 Input Channels, For PCI Expansion Slot
- Accepts Any Mix or Combination of Sensor Inputs Thermocouples, RTDs Strain Gages, LVDTs, VR Sensors Potentiometers, DC Volts
- Software Included
- Compatible with C#, .NET, C++, Visual Basic, LabVie
- Configures Transducer and Records Pressures
- Saves Data to .CSV File
- Logging Intervals as Short as 0.1 Seconds
- Works With USB and Serial Transducers
- USB Drivers Included
- Premium Graphing Version Available
- Compatible with All Current Versions of Windows
- Direct Sensor Input to Your PC via USB
- 16-bit Resolution, 100 KHz Conversion Rate
- 16 Input Channels, Sensor Excitation Provided
- Auto-Zero Capability for Better Accuracy
- Accepts Any Mix or Combination of Sensor Inputs Thermocouples, RTDs Strain Gages, LVDTs, VR Sensors Potentiometers, DC Volts
- Data Acquisition Software Included
- Calibrated Sensor Input to Your PC via USB
- 16-bit Resolution, 5 KHz Conversion Rate
- 8 Input Channels, Sensor Excitation Provided
- Connector Panel Included
- Data Acquisition Software Included
