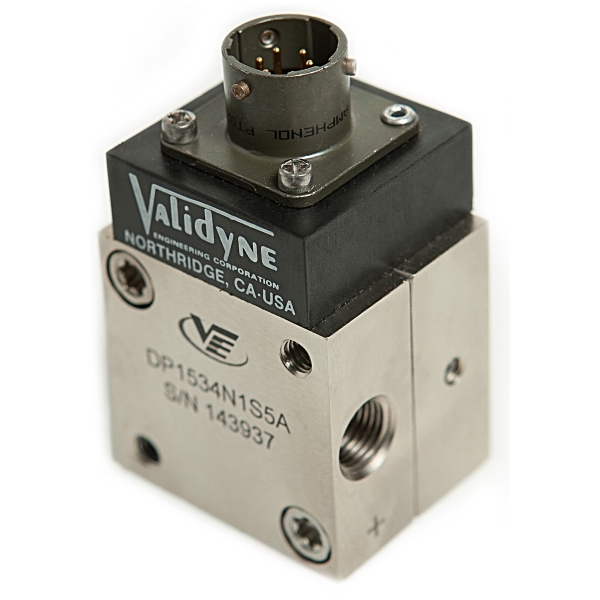

DP15 Variable Reluctance Pressure Sensor Capable of Range Changes
- Economical – Replaceable pressure sensing diaphragm for easy re-rangeability
- Wide Range – Provides pressure measurement from ±2.22” H20 to ±3200 psi in 23 full-scale ranges
- Flexible – Wet – Wet capability accepts liquids and gasses on both sides of the diaphragm
- Fast Response – Small internal pressure cavity volume for fast response to pressure variations
- Rugged – Withstands extreme shock and vibration
- Durable – Heavy-duty stainless construction stands up to abuse
An easy-to-replace pressure-sensing diaphragm maximizes the system’s functionality by making pressure measurements from ±2.22” H2O to ±3200 psi in one compact unit. Rugged and reliable, the DP15 pressure sensor provides superior accuracy for measuring low-pressure liquids and gasses, while it withstands the abuse of field and laboratory testing. The ability to change full scale ranges make the DP15 a very cost effective solution for applications that need different pressure ranges or university labs.
Now available in 316 SS for sea water and saline solutions and Inconel and Hastelloy for brine and other corrosive media.
Our offers
- Wet-Wet capability
- Full scale range from ±8 psi to ±10,000 psi
- Static line pressures up to 10,000 psi with 3% FS Max. Line Pressure Effect
- Fast dynamic response
- Sensor diaphragms are field replaceable
- High natural frequency
- Ranges of ±1, ±5, ±20, ±75, ±250, ±1000, ±3000 psid
- ½% Accuracy
- Accepts corrosive liquids and gases, both sides
- High natural frequency
- Low sensitivity to line pressure
- Rugged and Compact
- Operates from unregulated 9 to 55 Vdc
- Provides ±5 Vdc full scale output
- 4-20 mA output available
- Regulated against power variations
- Input/output isolation available
- USB Interface for Digital Operation with PC
- For Validyne Variable Reluctance Sensors AP10, DP15, DP45, DP103, DP303, DP350 & DP363
- USB Drivers and Data Logging Software Included
- Rugged DP transmitter
- For liquid or gas service
- 4-20 mA Two-wire, ±5 VDC
- Full Scale Ranges from 2.22 inH2O to 10 KPsi
- Excellent temperature characteristics
- NEMA 4 Housing
- 0.25% standard, 0.1% and 0.05% accuracy options available
- Now available in 316SS and Inconel
- Calibrated Sensor Input to Your PC via USB
- 16-bit Resolution, 5 KHz Conversion Rate
- 8 Input Channels, Sensor Excitation Provided
- Connector Panel Included
- Data Acquisition Software Included
- 3½ or 4½ Digit display
- Dual transducer inputs on CD223
- BCD output option
- Analog DC output
- Operates with variable reluctance or LVDT transducers
