1280-1002 Mating Electrical Connector

Return to Previous Page

1280-1002 Mating Electrical Connector

Category:

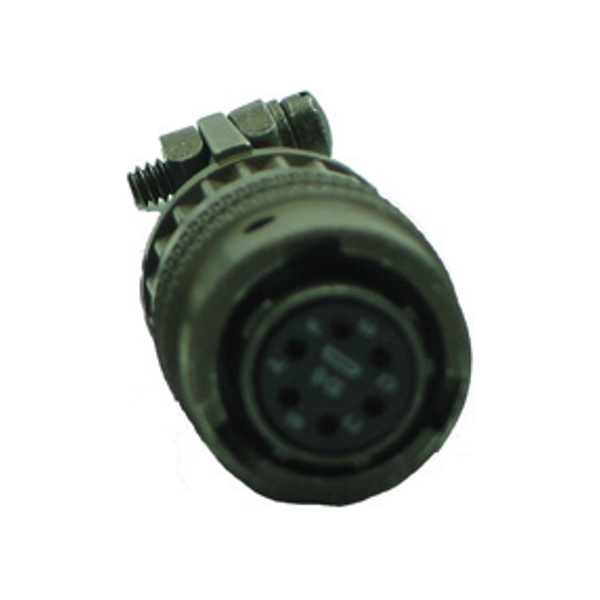

The standard Validyne mating connector for most transducer models. Consists of PT06A-10-6S socket connection with solder cups so you can fabricate your own cable. Includes strain relief clamp for mounting to cable jacket and self-polarizing twist-on shell.

Support here (Links to manual, data sheet, others)
