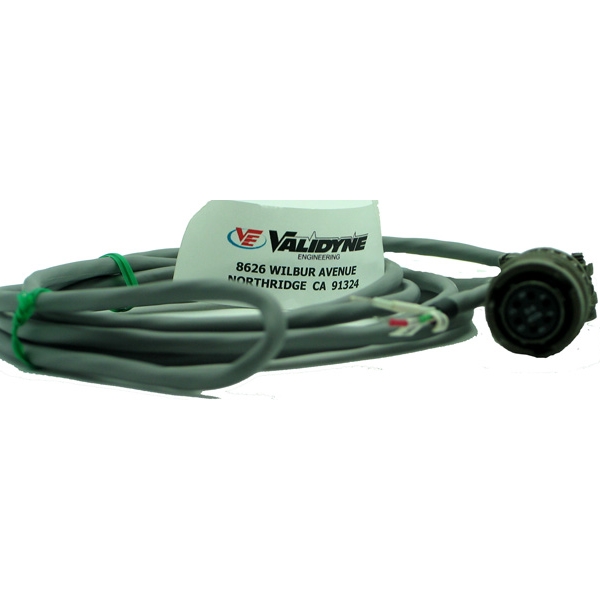

12457 Cable
Email to a friendConnects Validyne variable reluctance transducers to demodulators and electronics having screw terminal connections. Includes PT06A-10-6S connector with sockets and Belden 8434 cable. Available in 5, 10 15, 25 and 50 foot lengths.
